Metal Injection Molding Design Review: RFQ Notes That Protect Tooling Decisions

A practical guide to geometry, material, tolerance, post-processing, and validation decisions that help MIM programs quote and launch with fewer tooling surprises.

BLOG ARTICLE · METAL INJECTION MOLDING

Why this RFQ matters

A practical guide to MIM part geometry, wall thickness, material selection, tolerances, post-processing, and validation notes that help suppliers quote tooling with fewer assumptions.

Related service: Metal Injection Molding

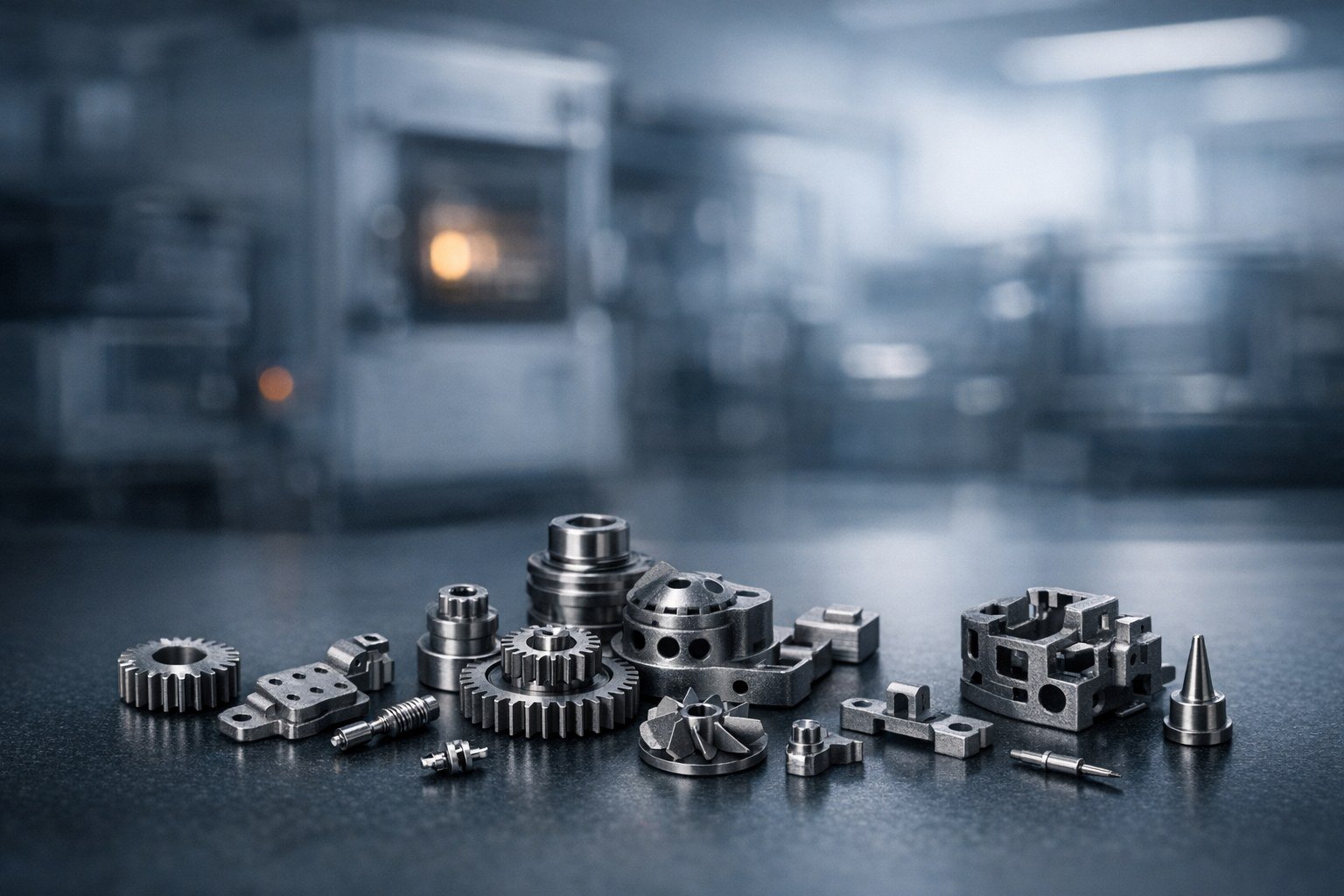

Metal injection molding can be a strong fit when a small metal component is too complex for efficient machining and too detailed for conventional forming. The process is especially useful for parts with fine features, curved surfaces, internal details, and repeat production volumes where tooling investment can be justified.

Before a supplier can price tooling, debinding, sintering, post-processing, and inspection, the RFQ package needs to explain how the part will function after shrinkage and finishing. That is where design review protects tooling decisions before samples are ordered.

What to include in a Metal Injection Molding RFQ

A good MIM RFQ should help the supplier decide whether the part is a good process fit and whether the tooling plan can support the required tolerance and surface expectations.

Current 2D drawing with revision level, units, and material notes
3D model in STEP or a comparable neutral format
Target material or alloy family, including any corrosion or strength requirement
Quantity split for prototype, pilot, and production releases
Estimated annual volume and expected program life
Target sample date, production launch timing, and approval process
Required reports, first article inspection, or validation documents

Design details that affect MIM feasibility

The most useful RFQ notes are the ones that show where the part can flex and where it cannot. MIM can produce complex shapes, but geometry still has to support stable molding, debinding, sintering, and inspection.

Thin walls or large changes in wall thickness can raise distortion risk.
Long unsupported features may need design review before tooling is released.
Threads, undercuts, and sealing faces may require secondary operations.
Cosmetic faces should identify whether gate marks or parting lines matter.

Explore the Metal Injection Molding service

If you are comparing manufacturing routes, this service page shows the production scope, typical part types, and practical limitations behind metal injection molding.

Common MIM RFQ mistakes

Sending only a 3D model without a controlled drawing
Requesting MIM for a part that is too large or too thick for stable processing
Leaving the material choice open without stating the performance target
Applying machining-style tolerances across the entire part
Forgetting to identify post-sinter machining needs
Not separating prototype quantities from production volumes

Checklist before you send the RFQ

Current drawing and STEP model are included
Material system or performance target is defined
Annual volume and launch timing are stated
Wall thickness, critical geometry, and distortion risks are visible
Functional dimensions are separated from noncritical dimensions
Post-processing, finishing, and inspection needs are listed
Cosmetic surfaces and allowable marks are identified

FAQ

When is metal injection molding a good fit?

MIM is usually strongest for small, complex metal parts with repeat production demand, especially when machining would remove too much material or require too many setups.

Do all tight dimensions need secondary machining?

No. Some dimensions can be controlled through the MIM process, but the most critical bores, faces, threads, or sealing areas may need machining after sintering.

Why does annual volume matter so much?

MIM requires tooling and process development. Higher repeat volume helps justify that upfront work and can make the unit economics more attractive than machining or other alternatives.

Validation details to define before tooling release

Shrinkage-sensitive geometry

Identify the walls, ribs, slots, and unsupported features that may move during sintering so the supplier can review the geometry before tooling is frozen.

Material and post-processing route

Call out the alloy family, property target, and any machining, sizing, heat treatment, or finishing steps that define the final part rather than the molded blank.

Sample approval method

Define how samples will be accepted, such as dimensional inspection, assembly trial, density check, cosmetic review, or a post-sinter functional test.

Need Review Support for a MIM Program?

ELUFA MFG supports metal injection molding projects from early drawing review through production planning. Send the drawing and model so the team can evaluate material, geometry, tooling, and post-processing before quoting.
